Streaming, and a scope to watch it with

// phase 2 · audio into linux · status: done, running on the board · published [date]

The goal of this step

Step 03 ended with the receiver enumerated as ALSA card 0. That proves the kernel found the device. It says nothing about whether audio is actually arriving, or whether what arrives is correct. This step closes that gap — and does it with something I can leave running and glance at, rather than a one-shot command.

The result is aurascope-dash: a small C program on the board that captures from ALSA, computes levels and a spectrum, and serves a live dashboard over HTTP. Two views, which answer two different questions:

• Instantaneous — what does the signal look like right now? Waveform, spectrum, level meter.
• The last 30 seconds — has it been behaving? A rolling RMS and peak trace.

Why arecord isn't enough

arecord -d 5 test.wav proves bytes moved. It does not tell you the signal is right, and it can't be watched while you change something at the other end of the link. Most of what I actually wanted to know is temporal: does the level hold steady, does it drop out when I walk away from the transmitter, does the noise floor sit where it should.

Capturing the audio

audio.c opens the PCM device and runs a detached capture thread. The parameters are deliberately unambitious — this is a monitor, not a recorder:

What gets computed each period

RMS and peak are the two numbers that matter, both in dB relative to full scale, with the + 1e-9f guard that stops digital silence turning into -inf:

rms = sqrtf((float)(sq_sum / (double)n));
rms_db  = 20.0f * log10f(rms  + 1e-9f);
peak_db = 20.0f * log10f(peak + 1e-9f);

Peak alone is too twitchy to read on a moving meter, so there's a separate held value that jumps instantly to a new maximum and then bleeds away at peak_hold_db -= 0.3f per period — about 28 dB per second. Fast enough to follow real changes, slow enough that a transient stays on screen long enough to see.

The spectrum is a 1024-point FFT with a Hann window applied first (fft_hann_window()). The window is not optional: an FFT implicitly assumes the block repeats forever, and a sine that doesn't fit a whole number of cycles into the block produces a discontinuity at the seam. Untapered, that smears energy across every bin — a single clean tone comes out looking like broadband noise. Hann tapers both ends to zero and the tone lands where it belongs.

Getting it to a browser

Everything lands in one audio_snapshot_t guarded by a mutex — the capture thread writes it, the HTTP thread reads a consistent copy:

typedef struct {
    long  ts_ms;
    float rms_db;
    float peak_db;
    float peak_hold_db;
    float wave[WAVE_POINTS];
    float spec[SPEC_BARS];
} audio_snapshot_t;

The transport is Server-Sent Events over a hand-rolled HTTP server, which is two deliberate choices. SSE rather than WebSockets because the data only ever travels one way: SSE is plain HTTP with a text/event-stream content type and newline-delimited frames, needs no handshake or framing library, and the browser reconnects on its own when the board reboots. And hand-rolled rather than pulling in a web server, because adding a package to an embedded image to serve one static page and one event stream is not a trade worth making.

Frames go out at roughly 10 Hz — decimated from the ~94 Hz capture period, since nothing on screen benefits from being redrawn faster than the eye resolves.

The two views

The client is a single index.html drawing to Canvas off the EventSource stream. No framework, no build step, no CDN — it has to work on a board that may have no route to the internet.

Instantaneous: a waveform per channel normalised to ±1, the spectrum on a −90 dB to 0 dB scale, and a vertical level meter spanning −60 dB to 0 dB with the RMS as a gradient fill and the held peak as a red line above it.

The last 30 seconds: a rolling chart holding HISTORY_LEN = 300 samples — at ~10 Hz, exactly 30 seconds — plotting RMS in green against peak in red, on a 0 to −60 dB scale. This is the panel that catches the problems worth catching. A steady pair of lines means the link is healthy; a notch means something dropped.

Why left and right get their own chart

Splitting the waveform into two panels looks like a presentation choice. It isn't — it follows the shape of the transport underneath.

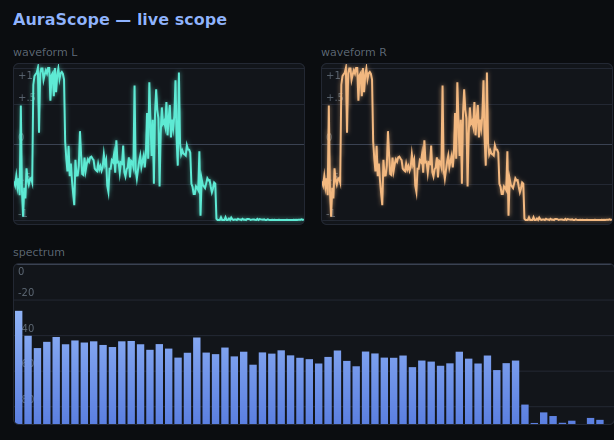

• The two channels track each other. Same bursts, same envelope, same decay into silence at the right-hand edge. That is the healthy result: both BIS streams are arriving and staying in step. Divergence between these two panels is the failure this layout exists to make obvious.
• This is real audio, not the test tone. A dense, constantly varying signal rather than a clean square wave — which is a stronger end-to-end result, because it means the chain is carrying real broadband content rather than something trivially compressible.
• Spectrum — energy spread broadly across the lower and middle bars with a sharp drop across the last few, on a 0 to −80 dB scale. The rolloff at the top end is the expected shape for LC3 at this bitrate: the codec spends its bits where the content is and lets the highest bands go.
• Both traces reach the rails. The peaks are hitting the ±1 gridlines, so the source is running hot. Worth watching — this is the panel that would show clipping as flattened tops before it became audible.

Packaging it

The whole thing is a normal Yocto recipe rather than something scp'd onto the board by hand, so it survives a reflash and ships with the image. The recipe's own summary is the honest one-line description of the program:

# meta-aurascope/recipes-apps/aurascope-dash/aurascope-dash_1.0.bb

SUMMARY = "Captures ALSA audio, computes RMS/peak/FFT, and serves a \
Canvas + Server-Sent-Events dashboard over a hand-rolled HTTP server."

An init script starts it at boot, so the dashboard is up as soon as the board is:

$ /etc/init.d/aurascope-dash status
$ curl http://<board-ip>:8080/

Result

Audio from the nRF5340 gateway's microphone travels over Auracast, decodes on the receiver, crosses USB into ALSA on the Zynq, and is visible in a browser as a live waveform, spectrum and level trace. That's the wireless-to-Linux path proven end to end, not inferred from an enumeration message.

It also builds the thing the rest of the project needs. Phase 3 is about observing this audio path two different ways — and both of those need somewhere to display their output. That somewhere now exists, with a live data feed already plumbed into it.
